Product Summary

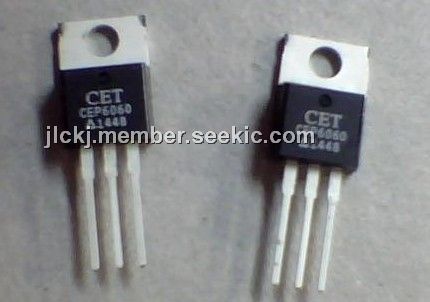

The CEP6060 is a N-Channel Enhancement Mode Field Effect Transistor.
Parametrics
CEP6060 absolute maximum ratings: (1)Drain-Source Voltage: 60 V; (2)Gate-Source Voltage: ±20 V; (3)Drain Current-Continuous: 48 A; (4)Drain Current-Pulsed: 144 A; (5)Maximum Power Dissipation @ TC = 25 ℃: 100 W, Derate above 25 ℃: 0.67 W/℃; (6)Operating and Store Temperature Range: -65 to 175 ℃.
Features
CEP6060 features: (1)60V, 48A,RDS(ON) = 25mΩ @VGS = 10V; (2)Super high dense cell design for extremely low RDS(ON); (3)High power and current handing capability; (4)Lead free product is acquired; (5)TO-220 & TO-263 package.

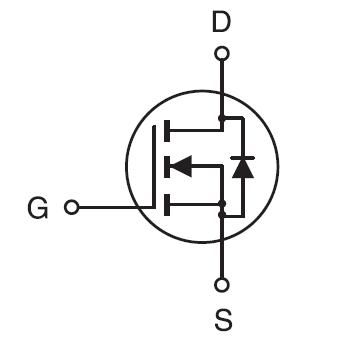

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CEP6060N |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
CEP6060R |
Other |
|
Data Sheet |
Negotiable |
|
||||
