Product Summary

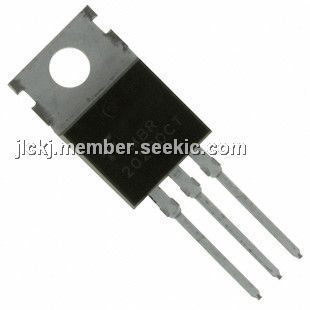

The MBR20200 is a 20 Amp HT Power Schottky Barrier Rectifier.

Parametrics

MBR20200 absolute maximum ratings: (1)Operating Junction Temperature: 150℃; (2)Storage Temperature: - 55 ℃ to +175℃; (3)Per diode Thermal Resistance 2.2℃/W Junction to Case.

Features

MBR20200 features: (1)High Junction Temperature Capability; (2)Low Leakage Current and Low Forward Voltage Drop; (3)Low Power Loss and High Efficiency.

Diagrams

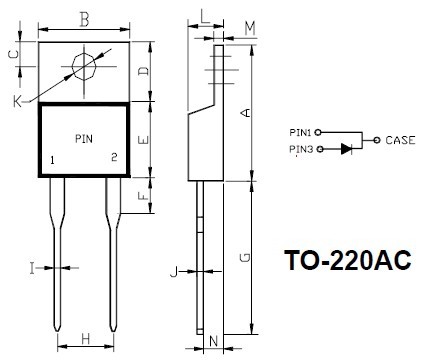

MBR20200 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBR20200CT
MBR20200CT
Taiwan Semiconductor
Schottky (Diodes & Rectifiers) 20 Amp 200 Volt Dual
Data Sheet
0-2000: $0.54
2000-4000: $0.47
4000-6000: $0.43
MBR20200FCT
MBR20200FCT
Other

Data Sheet
Negotiable
MBR20200
MBR20200
Other

Data Sheet
Negotiable
MBR20200CTTU
MBR20200CTTU
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) Dual High Voltage
Data Sheet
0-1: $0.72
1-25: $0.63
25-100: $0.58
100-250: $0.50
MBR20200CTG
MBR20200CTG
ON Semiconductor
Schottky (Diodes & Rectifiers) 20A 200V
Data Sheet
0-1: $0.97
1-25: $0.77
25-100: $0.62
100-500: $0.54
