Product Summary

The L7815 of three-terminal positive regulators is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7815 can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, the L7815 can be used with external components to obtain adjustable voltage and currents.

Parametrics

L7815 absolute maximum ratings: (1)VI DC Input Voltage for VO= 5 to 18V 35V; for VO= 20, 24V 40V; (2)IO Output Current Internally Limited; (3)Ptot Power Dissipation Internally Limited; (4)Tstg Storage Temperature Range: -65 to 150 ℃; (5)Top Operating Junction Temperature Range: for L7800 -55 to 150℃; for L7800C 0 to 150℃.

Features

L7815 features: (1)OUTPUT CURRENT TO 1.5A; (2)OUTPUT VOLTAGES OF 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)THERMAL OVERLOAD PROTECTION; (4)SHORT CIRCUIT PROTECTION; (5)OUTPUT TRANSITION SOA PROTECTION.

Diagrams

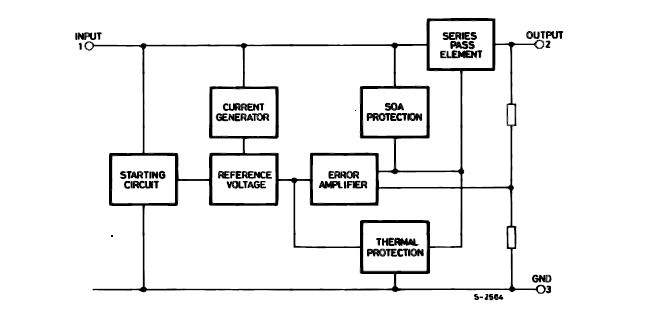

L7815 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
L7815
L7815

Other


Data Sheet

Negotiable
L7815ABD2T
L7815ABD2T

STMicroelectronics

Linear Regulators - Standard 15V 1.0A Positive

Data Sheet

Negotiable
L7815ABD2T-TR
L7815ABD2T-TR

STMicroelectronics

Linear Regulators - Standard 15V 1.0A Positive

Data Sheet

0-1: $0.47
1-10: $0.42
10-100: $0.32
100-250: $0.28
L7815ABP
L7815ABP

STMicroelectronics

Linear Regulators - Standard 15V 1.0A Positive

Data Sheet

Negotiable
L7815ABV
L7815ABV

STMicroelectronics

Linear Regulators - Standard 15V 1.0A Positive

Data Sheet

0-1: $0.42
1-10: $0.37
10-100: $0.29
100-250: $0.25
L7815ACD2T
L7815ACD2T

STMicroelectronics

Linear Regulators - Standard 15V 1.0A Positive

Data Sheet

Negotiable
L7815ACD2T-TR
L7815ACD2T-TR

STMicroelectronics

Linear Regulators - Standard 15V 1.0A Positive

Data Sheet

0-1: $0.42
1-10: $0.33
10-100: $0.28
100-250: $0.24
L7815ACV
L7815ACV

STMicroelectronics

Linear Regulators - Standard 15V 1.0A Positive

Data Sheet

0-1: $0.39
1-10: $0.34
10-100: $0.26
100-250: $0.23
