Product Summary

The IRF630 is the third generation HEXFET from international rectifier, which provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

Parametrics

IRF630 absolute maximum ratings: (1)ID@TC=25℃, continuous drain current, VGS@10V: 9.0 A; (2)ID@TC=100℃, continuous drain current, VGS@10V: 5.7 A; (3)pulse drain current: 36 A; (4)power dissipation: 74 W; (5)linear derating factor: 0.59 W/℃; (6)gate-to-source voltage: ±20 V; (7)single pulse avalanche energy: 7.4 mJ; (8)peak diode recovery dv/dt: 5.0 V/ns; (9)operating junction and storage temperature range: -55 to +150℃.

Features

IRF630 features: (1)dynamic dv/dt rating; (2)repetitive avalenche rated; (3)fast switching; (4)ease of paralleling; (5)simple drive requirements.

Diagrams

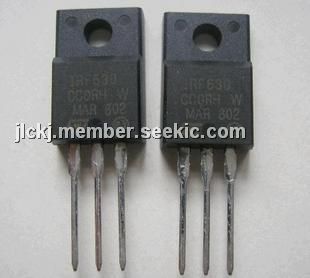

IRF630 diagram
