Product Summary

The D92-02 FRED from MacMic utilizes advanced processing techniques to achieve ultrafast recovery times and higher forward current. Its soft recovery characteristics and high reliability suit for wide industrial applications.

Parametrics

D92-02 absolute maximum ratings: (1)IF(AV), Average Forward Current: 10 A at TC=110℃, Per Diode; 20 A at TC=110℃, Per Package; (2)IF(RMS), RMS Forward Current: 14A at TC=110℃, Per Diode; (3)IFSM, Non-Repetitive Surge Forward Current: 100 A at TJ=45℃, t=10ms, 50Hz, Sine; (4)PD, Power Dissipation: 83 W; (5)TJ, Junction Temperature: -40 to +150 ℃; (6)TSTG, Storage Temperature Range: -40 to +150 ℃; (7)Torque, Module-to-Sink: 1.1N·m at Recommended（M3）; (8)RθJC, Thermal Resistance: 1.5 ℃ /W at Junction-to-Case; (9)Weight: 5.2g.

Features

D92-02 features: (1)Ultrafast Recovery Time; (2)Soft Recovery Characteristics; (3)Low Recovery Loss; (4)Low Forward Voltage; (5)High Surge Current Capability; (6)Low Leakage Current.

Diagrams

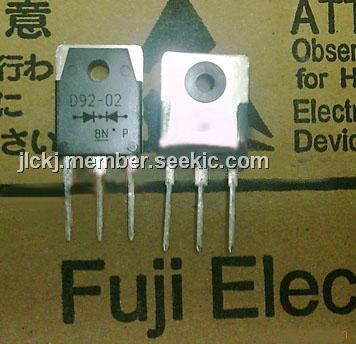

D92-02 diagram
