Product Summary

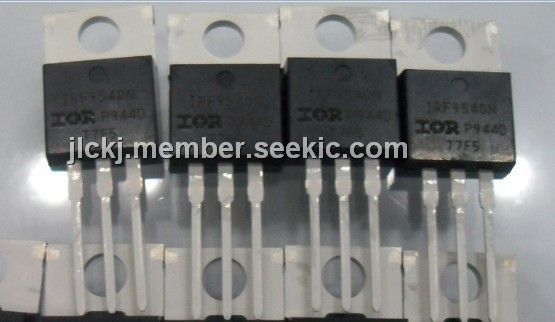

The IRF9540 is the fifth Generation HEXFET from International Rectifier, which utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. The IRF9540 also provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

Parametrics

IRF9540 absolute maximum ratings: (1)ID@TC=25℃, continuous drain current, VGS@10V: -23 A; (2)ID@TC=100℃, continuous drain current, VGS@10V: -16 A; (3)pulse drain current: -76 A; (4)power dissipation: 140 W; (5)linear derating factor: 0.91 W/℃; (6)gate-to-source voltage: ±20 V; (7)single pulse avalanche energy: 430 mJ; (8)Avalanche Current: -11 A; (9)Repetitive Avalanche Energy: 14 mJ; (10)operating junction and storage temperature range: -55 to +150℃.

Features

IRF9540 features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)P-Channel; (6)Fully Avalanche Rated.

Diagrams

IRF9540 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRF9540
IRF9540
Vishay/Siliconix
MOSFET -100V Single P-Channel HEXFET
Data Sheet
0-1: $3.32
1-10: $2.69
10-100: $2.41
100-250: $2.26
IRF9540, SiHF9540
IRF9540, SiHF9540
Other

Data Sheet
Negotiable
IRF9540_PDD
IRF9540_PDD
Fairchild Semiconductor
MOSFET Replaced by SFP9540/P-CH/100V/19A/0.2OHM
Data Sheet
Negotiable
IRF9540_R4941
IRF9540_R4941
Fairchild Semiconductor
MOSFET TO-220AB P-Ch Power
Data Sheet
Negotiable
IRF9540L
IRF9540L

MOSFET P-CH 100V 19A TO-262
Data Sheet
0-250: $1.30
IRF9540N
IRF9540N
International Rectifier
MOSFET P-CH 100V 23A TO-220AB
Data Sheet
1-250: $0.92
IRF9540NPBF
IRF9540NPBF
International Rectifier
MOSFET MOSFT PCh -100V -23A 117mOhm 64.7nC
Data Sheet
0-1: $1.53
1-25: $0.98
25-100: $0.71
100-250: $0.67
IRF9540NSTRLPBF
IRF9540NSTRLPBF
International Rectifier
MOSFET MOSFT PCh -100V -23A 117mOhm 64.7nC
Data Sheet
0-1: $1.96
1-25: $1.27
25-100: $0.91
100-250: $0.85
