Product Summary

The MBR1045 is a schottky rectifier.

Parametrics

MBR1045 absolute maximum ratings: (1)Maximum repetitive peak reverse voltage VRRM: 45V; (2)Maximum working peak reverse voltage VRWM: 45V; (3)Maximum DC blocking voltage VDC: 45V; (4)Maximum average forward rectified current: I(AV) 10.0 Amps; (5)Peak repetitive forward current at TC=135℃; (6)IFRM 20.0 Amps; (7)Peak forward surge current; (8)8.3ms single half sine-wave superimposed; (9)on rated load (JEDEC Method); (10)IFSM 150.0 Amps; (11)Peak repetitive reverse surge current (NOTE 1) IRRM: 1.0Amps; (12)Voltage rate of change (rated VR) dv/dt: 10,000 Vms; (13)Maximum thermal resistance, junction to case RQJC: 2.0 ℃/W; (14)Operating junction temperature range TJ: -65 to +150 ℃; (15)Storage temperature range TSTG: -65 to +175 ℃.

Features

MBR1045 features: (1)Plastic package has Underwriters Laboratory Flammability Classifications 94V-0; (2)Metal silicon junction, majority carrier conduction; (3)Low power loss, high efficiency; (4)High current capability, low forward voltage drop; (5)High surge capability; (6)For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications; (7)Guardring for overvoltage protection; (8)High temperature soldering guaranteed: 250℃/10 seconds, 0.25" (6.35mm) from case.

Diagrams

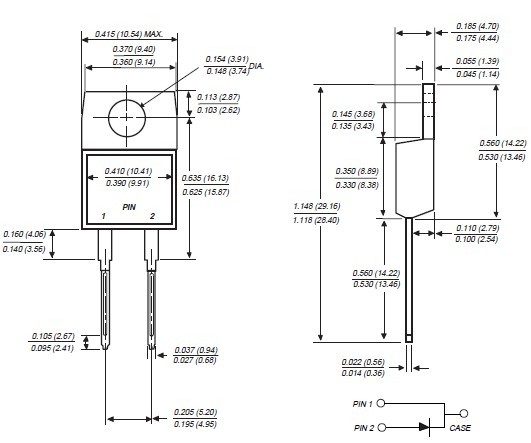

MBR1045 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MBR1045
MBR1045
Fairchild Semiconductor
Schottky (Diodes & Rectifiers) 10 Amp Rectifier Schottky Barrier
Data Sheet
0-1: $0.56
1-25: $0.50
25-100: $0.43
100-250: $0.38
