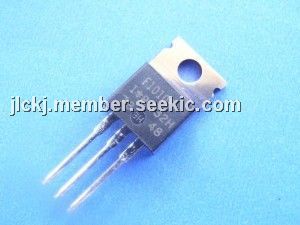

IRF1010

HEXFET Power MOSFET, TO-220, Ultra Low On-Resistance, 84 A, 180 mJ

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.62~0.78 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.62~0.78

PartNumber:: IRF1010

Brand:: International Rectifier - IR | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Sam Zeng's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-19

From Other Seller

Part Number:IRF1010
US $0.62 - 0.78
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF1010 is a HEXFET Power MOSFET, which is specifically designed for Automotive applications. It utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175℃ junction operating temperature, fast switching speed and improved repetitive avalanche rating . These features of the IRF1010 combine to make this design an extremely efficient and reliable device for use in Automotive applications and a wide variety of other applications.

Parametrics

IRF1010 absolute maximum ratings: (1)ID@TC=25℃, continuous drain current, VGS@10V: 84 A; (2)ID@TC=100℃, continuous drain current, VGS@10V: 60 A; (3)pulse drain current: 75 A; (4)power dissipation: 340 W; (5)linear derating factor: 0.90 W/℃; (6)gate-to-source voltage: ±20 V; (7)single pulse avalanche energy: 180 mJ; (8)operating junction and storage temperature range: -55 to +150℃.

Features

IRF1010 features: (1)Advanced Process Technology; (2)Ultra Low On-Resistance; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Repetitive Avalanche Allowed up to Tjmax; (6)Lead-Free, RoHS Compliant; (7)Automotive Qualified.
