Product Summary

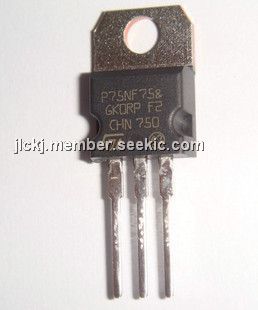

This Power MOSFET STP75NF75 realized with STMicroelectronics unique STripFET. process has specifically been designed to minimize input capacitance and gate charge. STP75NF75 is therefore suitable as primary switch in advanced highefficiency, high-frequency isolated DC-DC converters for Telecom and Computer applications. STP75NF75 is also intended for any applications with low gate drive requirements.

Parametrics

STP75NF75 absolute maximum ratings: (1)VDS Drain-source voltage (VGS = 0) 75 V; (2)VDGR Drain-gate voltage (RGS = 20KΩ) 75 V; (3)VGS Gate-source voltage ± 20 V; (4)ID Drain current (continuous) at TC = 25℃ 80A; (5)ID Drain current (continuous) at TC=100℃ 70A; (6)IDM Drain current (pulsed) 320A; (7)dv/dt Peak diode recovery voltage slope 12 V/ns; (8)EAS Single pulse avalanche energy 700 mJ.

Features

STP75NF75 features: (1)Exceptional dv/dt capability; (2)100% avalanche tested; (3)Switching application.

Diagrams

STP75NF75 Internal schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STP75NF75
STP75NF75
STMicroelectronics
MOSFET N-Ch 75 Volt 80 Amp
Data Sheet
0-1: $1.37
1-10: $1.16
10-100: $0.98
100-250: $0.87
STP75NF75FP
STP75NF75FP
STMicroelectronics
MOSFET N-Ch, 75V-0.0095ohms 80A
Data Sheet
0-620: $1.22
620-1000: $1.04
1000-2000: $1.00
2000-5000: $0.95
STP75NF75L
STP75NF75L
STMicroelectronics
MOSFET N-Ch 75 Volt 75 Amp
Data Sheet
Negotiable
STP75NF75-M
STP75NF75-M
Other

Data Sheet
Negotiable
