Product Summary
The 2SK2837 is a TOSHIBA field effect transistor.
Parametrics
2SK2837 absolute maximum ratings: (1)Drain-source voltage: 500 V ; (2)Drain-gate voltage (RGS = 20 kΩ): 500 V ; (3)Gate-source voltage: ±30 V ; (4)Drain current DC: 20 A ; (5)Pulse: 80 A ; (6)Drain power dissipation (Tc = 25℃): 150 W ; (7)Single pulse avalanche energy: 960 mJ ; (8)Avalanche current: 20 A ; (9)Repetitive avalanche energy: 15 mJ ; (10)Channel temperature: 150 ℃; (11)Storage temperature range: -55~150 ℃.
Features
2SK2837 features: (1)Low drain-source ON resistance: RDS (ON) = 0.21 Ω (typ.); (2)High forward transfer admittance: |Yfs|= 17 S (typ.); (3)Low leakage current: IDSS = 100 μA (max) (VDS = 500 V); (4)Enhancement mode: Vth = 2.0~4.0 V (VDS = 10 V, ID = 1 mA).

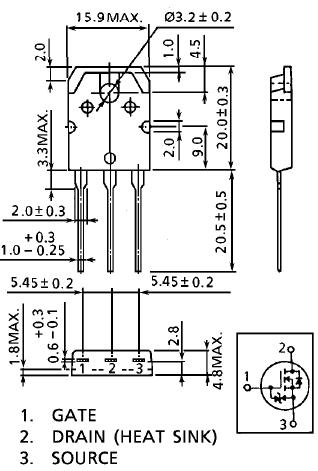

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SK2837 |
|
MOSFET N-CH 500V 20A TO-3PN |
Data Sheet |
Negotiable |
|
||||
|
2SK2837(Q,T) |
|
MOSFET N-CH 500V 20A TO-3PN |
Data Sheet |
Negotiable |
|
||||
