Product Summary
The 2SC2655 is a transistor. The applications of the 2SC2655 include power amplifier, switching applications.
Parametrics
2SC2655 absolute maximum ratings: (1)collector-base voltage: 50 V; (2)collector-emitter voltage: 50 V; (3)emitter-base voltage: 5 V; (4)collector current: 2 A; (5)base current: 0.5 A; (6)collectir power dissipation: 900 mW; (7)junction temperature: 150 ℃; (8)storage temperature range: -55 to 150 ℃.
Features
2SC2655 features: (1)low saturation voltage: VCE (sat)=0.5 V max (IC=1A); (2)high speed switching time: tstg=1.0 μs typ; (3)complementary to 2SA1020.

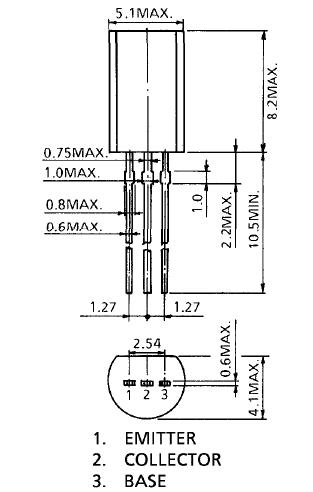

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC2655 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
2SC2655-Y |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
2SC2655-Y(F,M) |
Toshiba |
Transistors Bipolar (BJT) Transistor NPN, 50V, 2A |
Data Sheet |
Negotiable |
|
||||||||||||
|
2SC2655-Y(TE6,F,M) |
Toshiba |
Transistors Bipolar (BJT) NPN VCE 0.5V 900mW VCEO 50V tstg 1.0 |
Data Sheet |
|
|
||||||||||||
