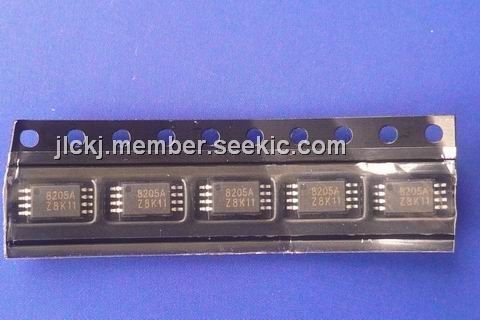

Product Summary

The 8205A is a dual N-channel enhancement-mode MOSFET. It is a rugged gate version of advanced trench process. The 8205A has been optimized for power management applications with a wide range of gate drive voltage(2.5V to 10V). The applications of it are battery protection, load switch, power management.

Parametrics

8205A absolute maximum ratings: (1)drain-source voltage:20V; (2)gate-source voltage:±12V; (3)drain current(continuous):6A; (4)drain current(plused):30A; (5)total power dissipation @ TA=25℃:1.5W; (6)total power dissipation @ TA=75℃:0.96W; (7)operating and storage temperature range:-55℃ to +150℃; (8)thermal resistance junction to ambient:83℃/W.

Features

8205A features: (1)RDS(on)=38mΩ @ VGS=2.5V, ID=5.2A, RDS(on)=25mΩ @ VGS=4.5V, ID=6A; (2)high density cell design for ultra low on-resistance; (3)high power and current handing capability; (4)fully characterized avalanche voltage and current; (5)ideal for Li ion battery pack applications.

Diagrams

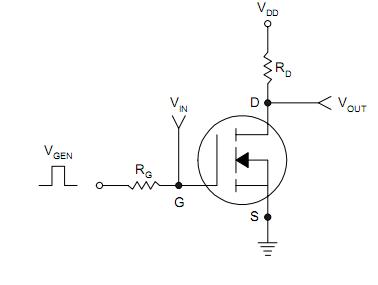

8205A circuit diagram
