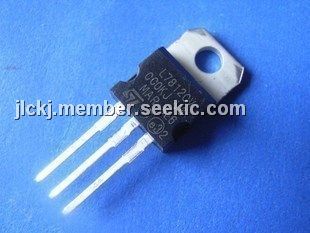

Product Summary

The L7812 of three-terminal positive regulators is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7812 can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, the L7812 can be used with external components to obtain adjustable voltage and currents.

Parametrics

L7812 absolute maximum ratings: (1)VI DC Input Voltage for VO= 5 to 18V 35V; for VO= 20, 24V 40V; (2)IO Output Current Internally Limited; (3)Ptot Power Dissipation Internally Limited; (4)Tstg Storage Temperature Range: -65 to 150 ℃; (5)Top Operating Junction Temperature Range: for L7800 -55 to 150℃; for L7800C 0 to 150℃.

Features

L7812 features: (1)OUTPUT CURRENT TO 1.5A; (2)OUTPUT VOLTAGES OF 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)THERMAL OVERLOAD PROTECTION; (4)SHORT CIRCUIT PROTECTION; (5)OUTPUT TRANSITION SOA PROTECTION.

Diagrams

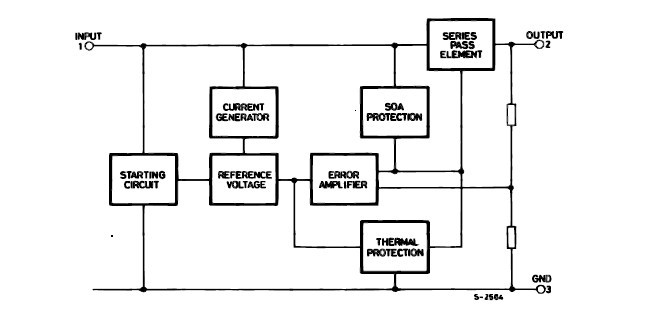

L7812 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L7812
L7812
Other

Data Sheet
Negotiable
L7812ABD2T
L7812ABD2T
STMicroelectronics
Linear Regulators - Standard 12V 1.0A Positive
Data Sheet
Negotiable
L7812ABD2T-TR
L7812ABD2T-TR
STMicroelectronics
Linear Regulators - Standard 12V 1.0A Positive
Data Sheet
0-1: $0.47
1-10: $0.42
10-100: $0.32
100-250: $0.28
L7812ABV
L7812ABV
STMicroelectronics
Linear Regulators - Standard 12V 1.0A Positive
Data Sheet
0-1: $0.42
1-10: $0.37
10-100: $0.29
100-250: $0.25
L7812ABV-DG
L7812ABV-DG
STMicroelectronics
Linear Regulators - Standard 1.5A POS REG IC 12V Output Voltage
Data Sheet
0-1850: $0.17
1850-2000: $0.15
2000-5000: $0.14
5000-10000: $0.13
L7812ACD2T
L7812ACD2T
STMicroelectronics
Linear Regulators - Standard 12V 1.0A Positive
Data Sheet
Negotiable
L7812ACD2T-TR
L7812ACD2T-TR
STMicroelectronics
Linear Regulators - Standard 12V 1.0A Positive
Data Sheet
0-1: $0.46
1-10: $0.41
10-100: $0.31
100-250: $0.27
L7812ACP
L7812ACP
STMicroelectronics
Linear Regulators - Standard 2% Output Volt Tol +12 V out 1 A out
Data Sheet
Negotiable
