Product Summary
The CEM9435 is a P-channel enhancement mode MOSFET.
Parametrics
CEM9435 absolute maximum ratings: (1)drain-source voltage: -30 V; (2)gate-sourve voltage: ±20 V; (3)drain current-continous @ TJ=125-pulsed: ±5.1 A; (4)drain-source diode forward current: -2.6 A; (5)maximum power dissipation: 2.5 W; (6)operating junction and storage temperature range: -55 to 150 ℃.
Features
CEM9435 features: (1)-30 V, -5.1 A, RDS(ON)=55mΩ @ VGS=-10 V, RDS(ON)=105mΩ @ VGS=-4.5 V; (2)super high dense cell design for extremely low RDS(ON); (3)high power and current handing capability; (4)surface mount package.

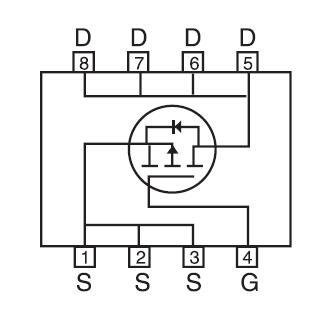

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CEM9435A |
Other |
|
Data Sheet |
Negotiable |
|
||||
